Description

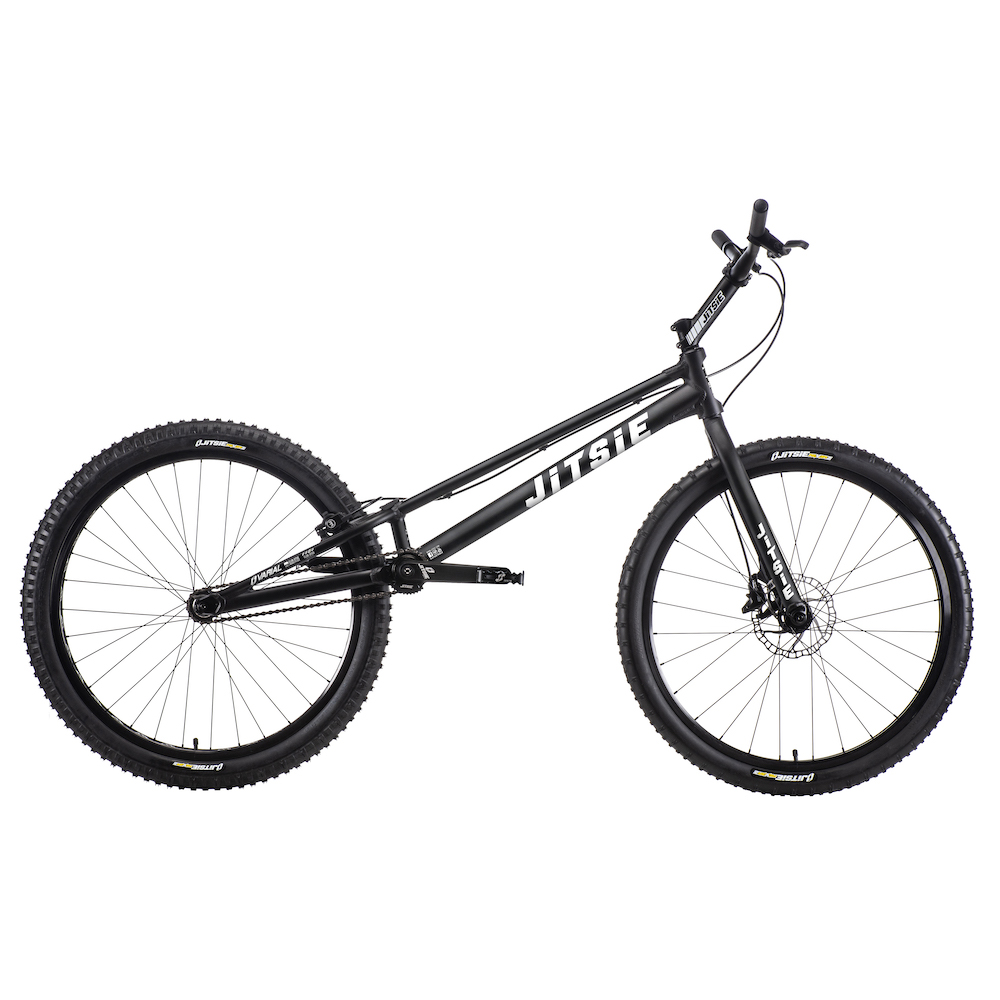

Taking innovation to the next level in trials, the Varial bike reflects Jitsie's 100% focus on trials. The unity of quality manufacturing and functional minimalistic design result in a performant and durable bicycle that makes it the choice for any trials rider.

FRAME KIT

  • frame: Jitsie Varial 1085mm HS
  • fork: Jitsie Varial 400mm Disc

FEATURES FRAME

  • manufactured from aerospace 6061-T6 aluminium
  • minimalistic design with focus on performance and durability
  • 120mm high CNC machined head tube designed for semi-integrated headset
  • CNC machined 68mm wide bottom bracket yoke for ISIS bottom bracket
  • CNC machined integrated rear brake boaster for HS rim brakes distanced 100mm apart
  • CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
  • sandblasted and black anodized finish with Jitsie graphics
  • frame comes supplied with lightweight silicon seat plug
  • frame allows for the Jitsie aftermarket seat to be installed

GEOMETRY

  • wheelbase: 1085mm
  • chainstay length: 380mm
  • bottom bracket height: 70mm
  • headtube: 120mm
  • headtube angle: 71.5°

(geometry based on Jitsie Varial fork 400mm and +35mm offset)

WHEELS

  • hub front / rear: D100 28h / HS116 32h
  • rim front / rear: 26" 32mm 28h / 26" 48mm 32h
  • spokes / nipples: inox 1.8mm / aluminium
  • tyre front / rear: Reverz 26"x2.0 / Reverz 26"x2.5
  • tubes: 26" light 0.9mm

COMPONENTS

  • headset: semi-integrated 1 1/8"
  • headset spacer: 5mm aluminium
  • stem: 150mm 35°
  • handlebar: 31.8mm 730x90mm
  • grips: foam
  • front brake / disc: Shimano MT400 / 160mm
  • rear brake: Magura HS33

DRIVETRAIN

  • bottom bracket: Isis 123mm
  • cranks: 175mm
  • freewheel: 108.9 18t
  • protector: bash ring
  • sprocket: steel 15t
  • chain: KMC Z610HX
  • chain tensioner: snail cams

WEIGHT

  • 8.525kg excluding pedals
