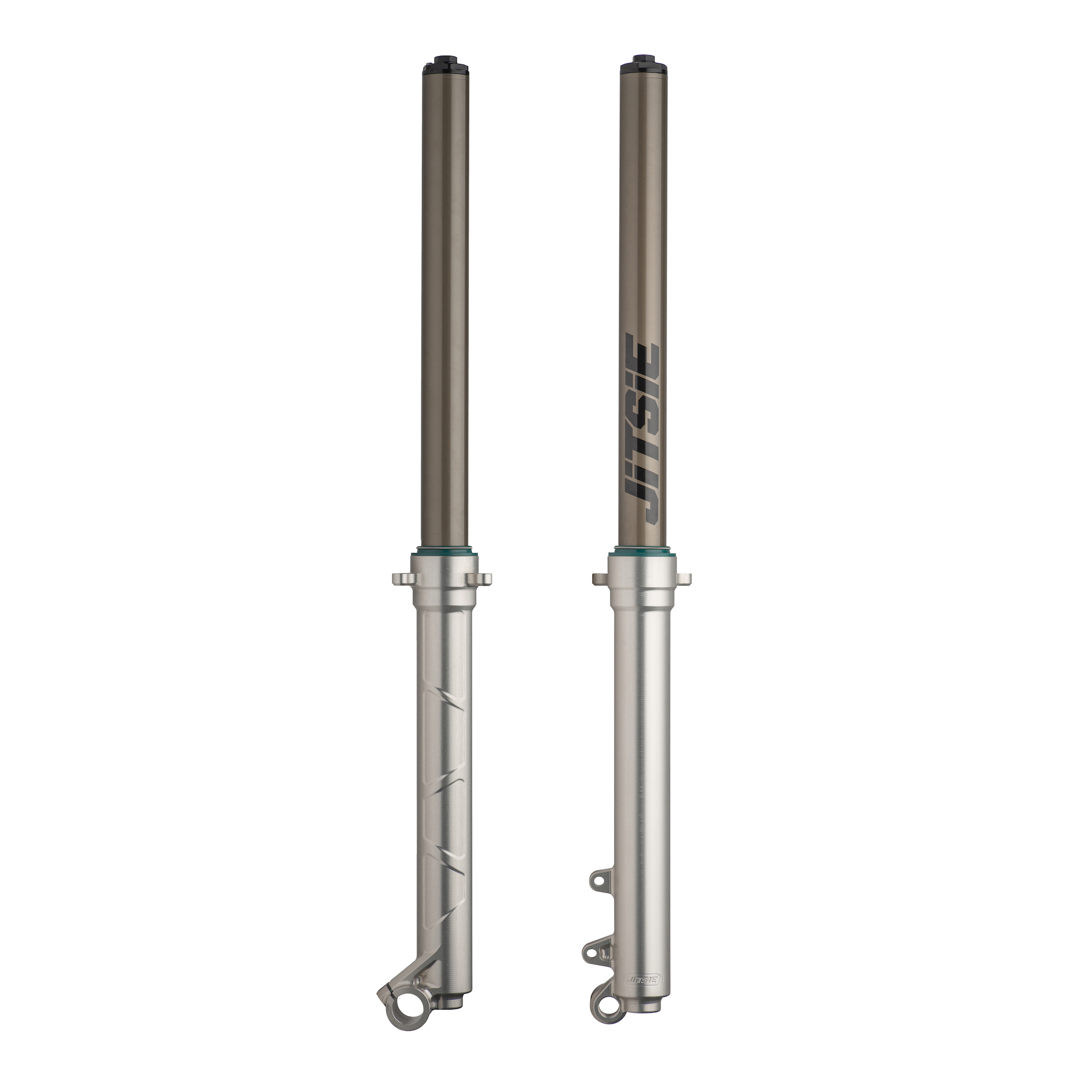

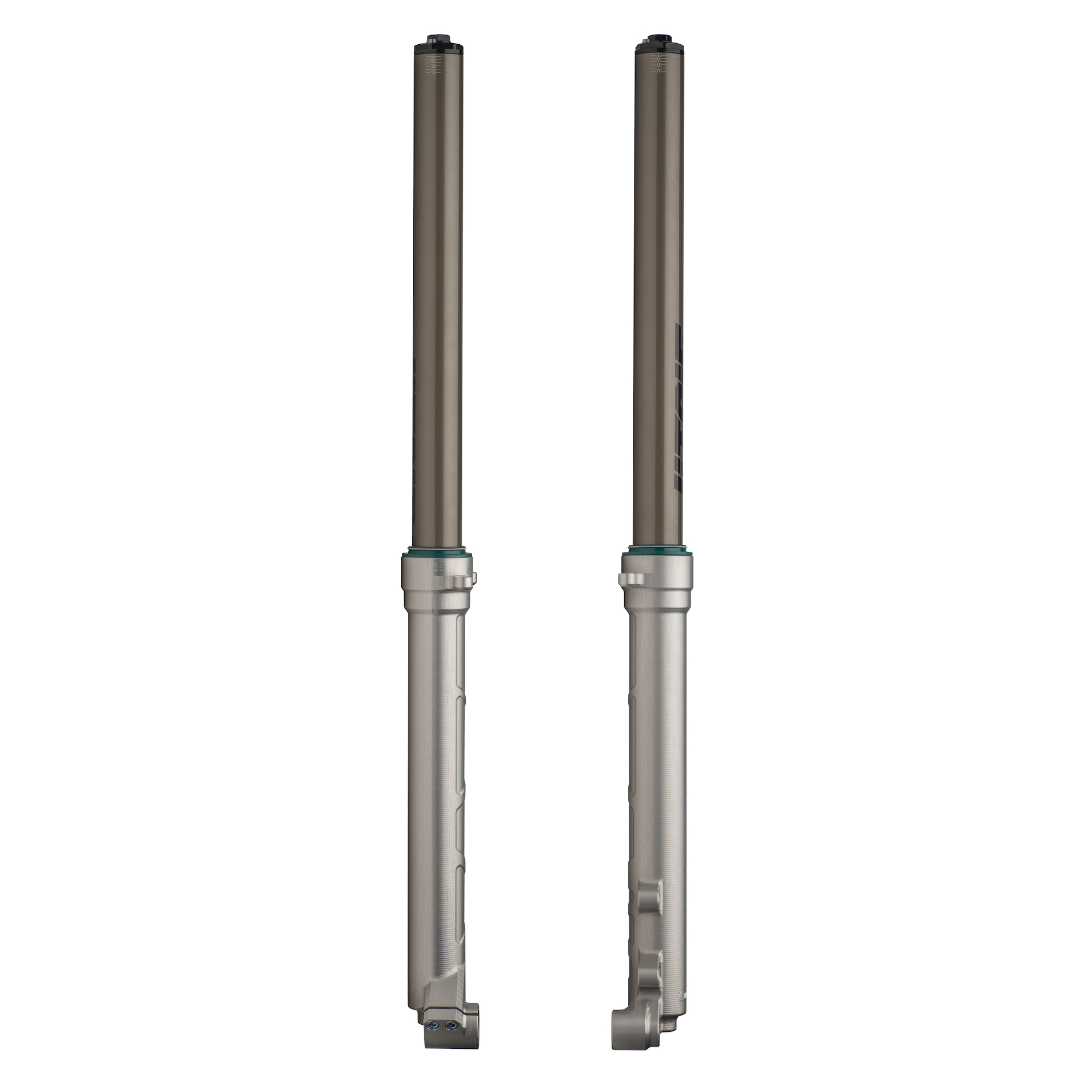

Jitsie Front Fork ADR39F 39MM

• length: 750mm
• stroke: 170mm
• weight: 4.4kg
• damping system: open cartridge with Ø20mm piston and Ø10mm piston rod
• oil lock system: bottom of the right fork leg contains a cone which strongly increases the progressiveness of the damping during the very last part of the stroke to eliminate bottoming

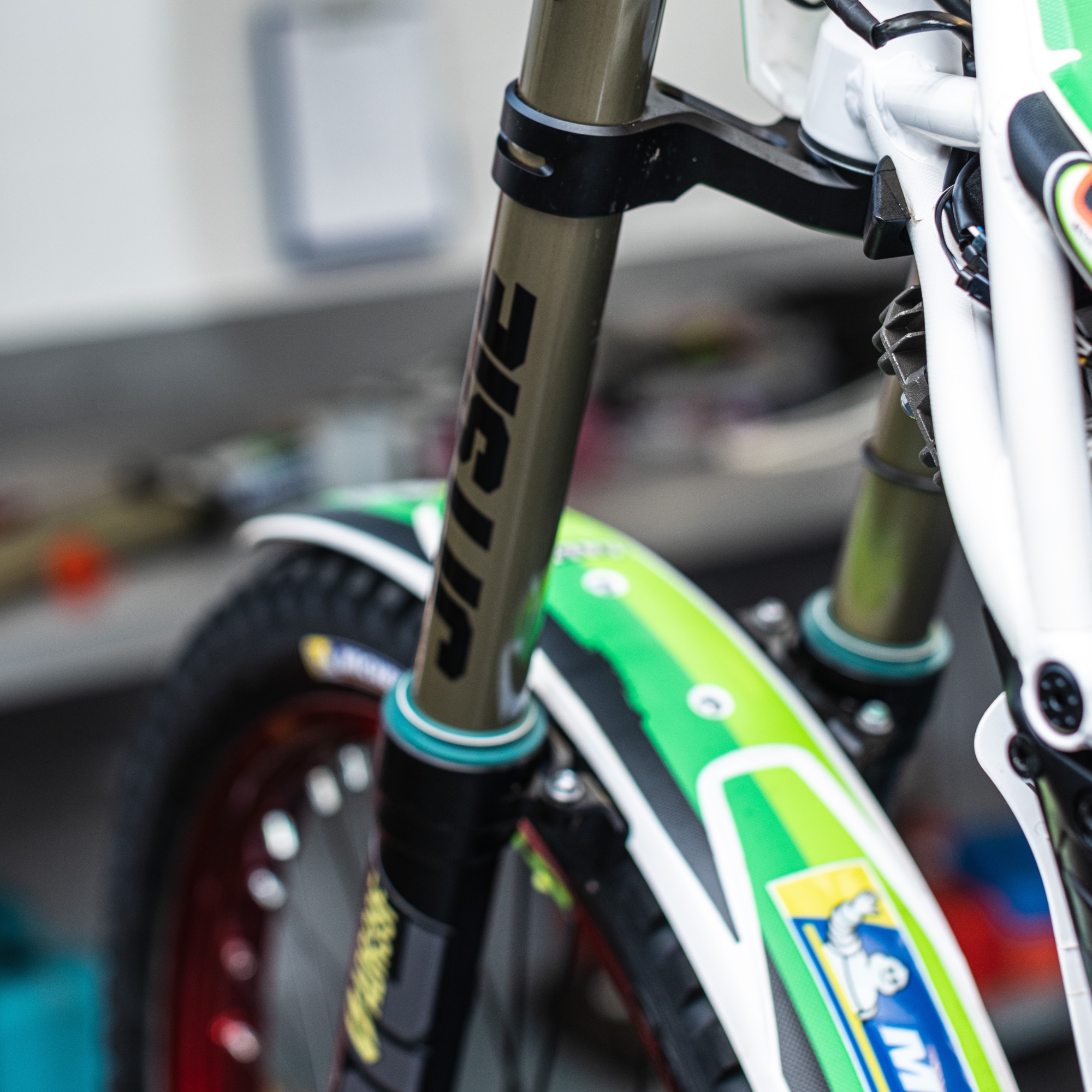

• upper tubes: hard anodised Ø39mm high grade aluminum tubes with Jitsie branding

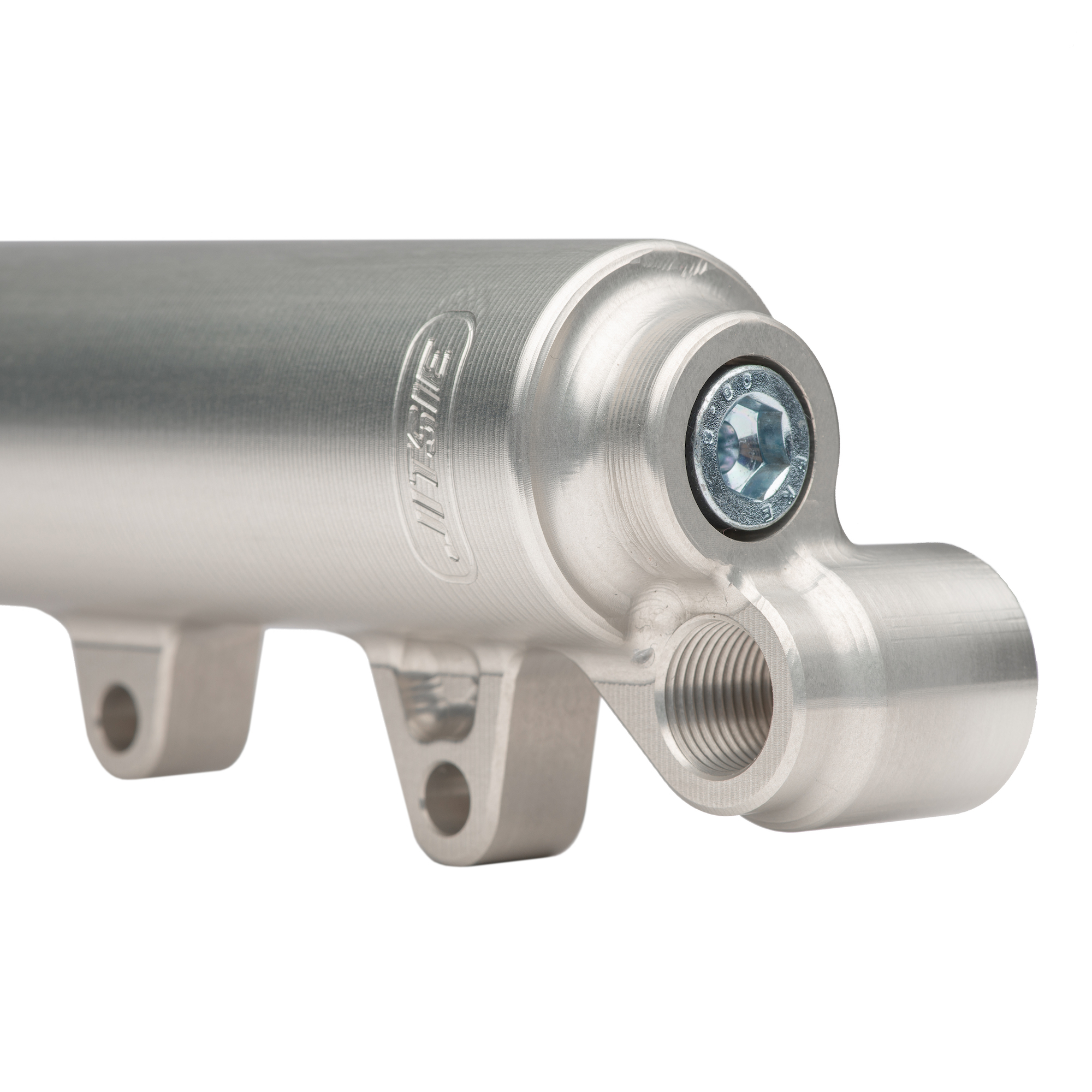

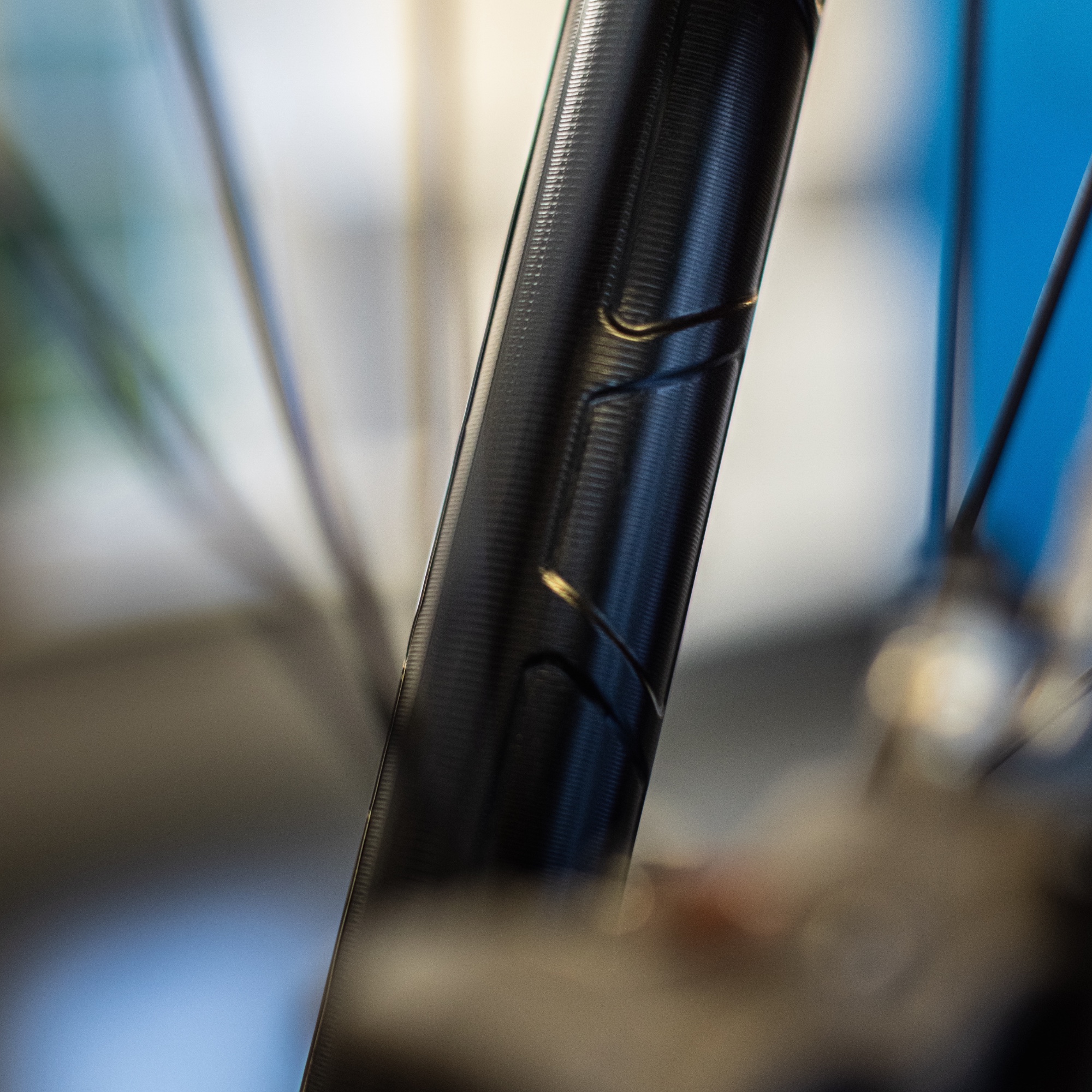

• lower tubes: CNC machined from billet aerograde aluminum and anodised
• spring: 370mm CrSi spring located in the right fork leg

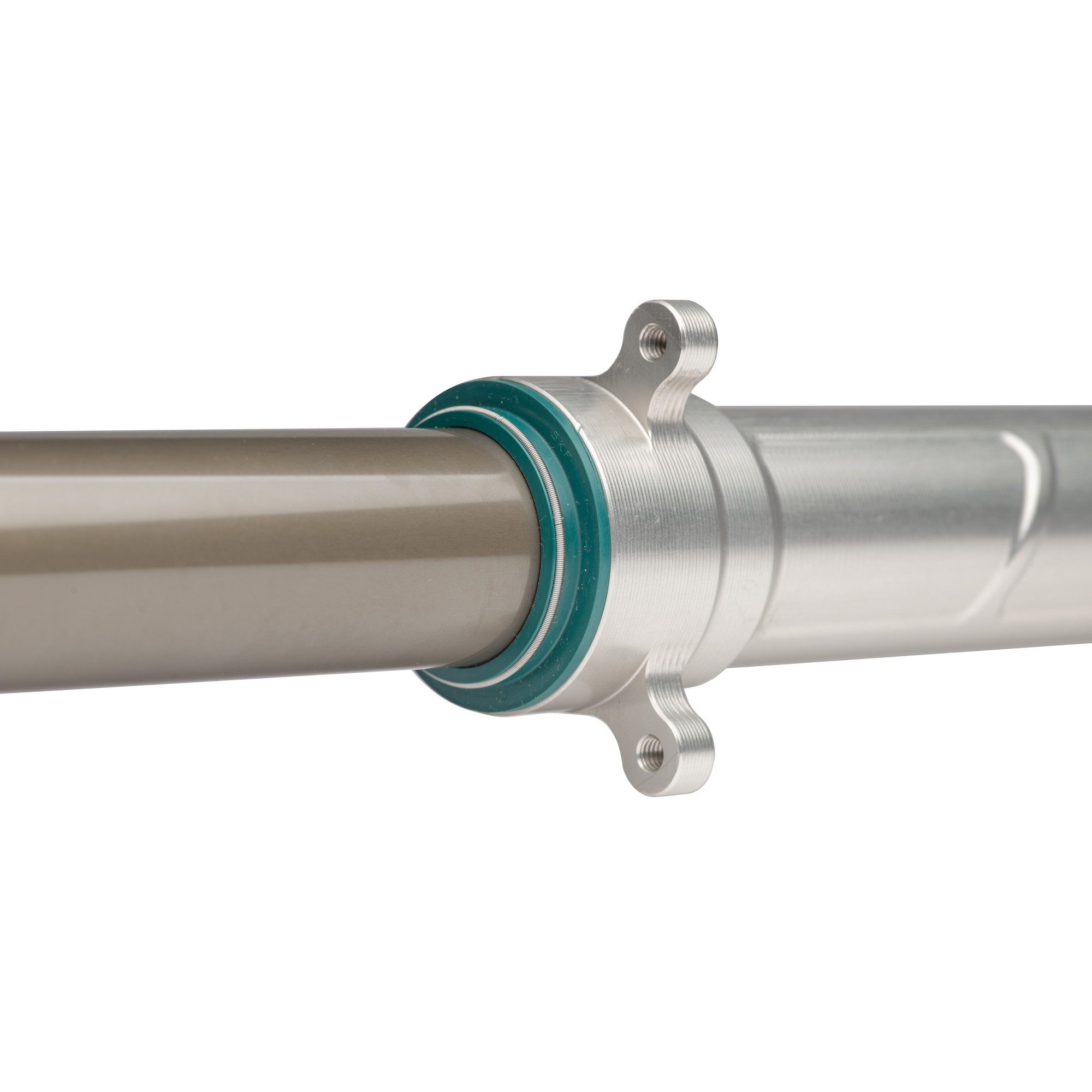

• seals: SKF 39mm oil- and dust seals
• bearings: Daido teflon coated slide and guide bushes
• oil: Motul EXPERT M 10W
• coatings: all aluminium cartridge parts are anodised to avoid fork oil contamination

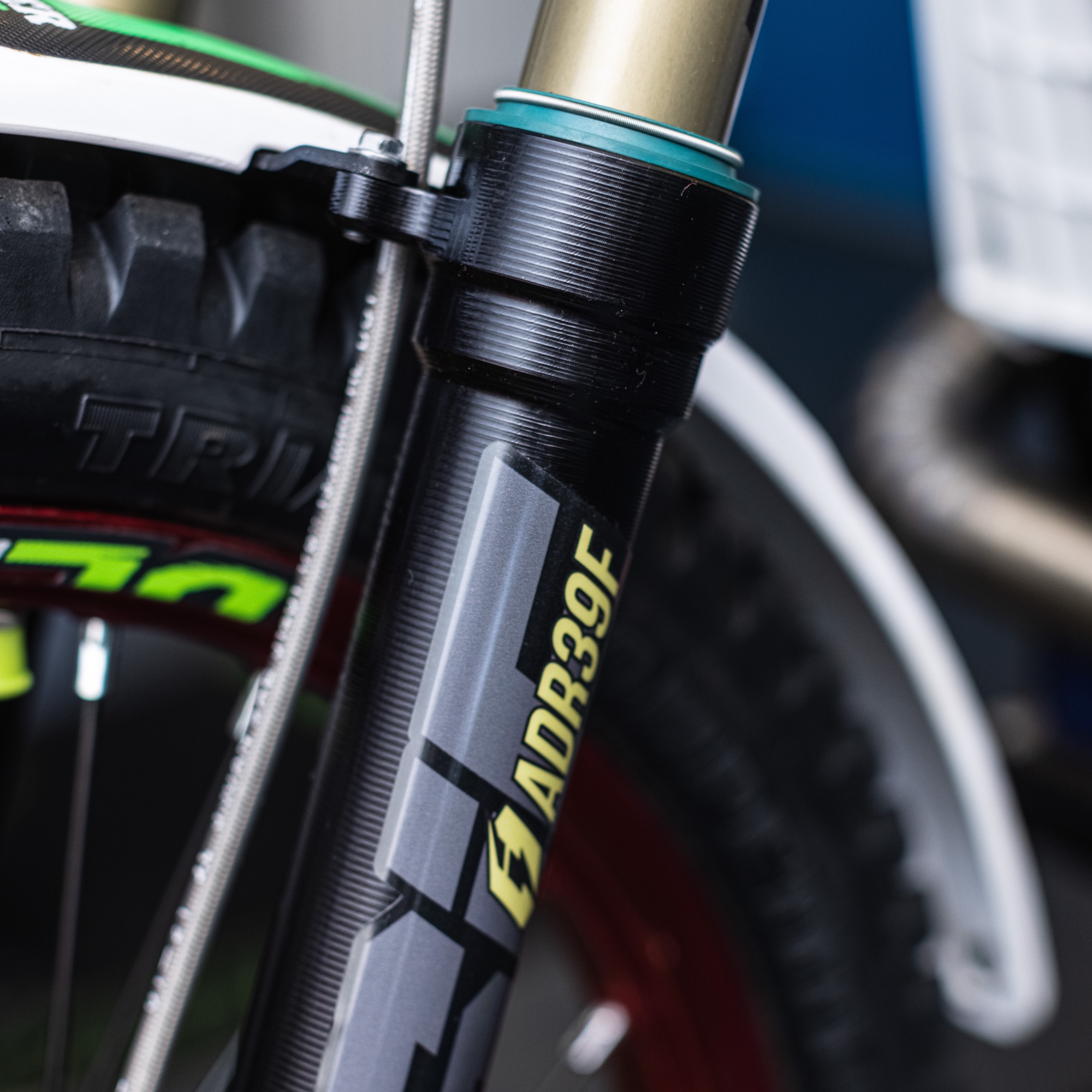

• stickers: each Jitsie ADRF front fork comes with a sticker sheet

Performance. Precision. Personalisation. The Jitsie ADRF front forks come packed with factory level features and allow for a truly custom setup to suit your riding style.

• compression damping adjuster integrated in left (disc side) top cap
• rebound damping adjuster integrated in right top cap
• spring preload adjuster integrated in right top cap

• 8.3N/mm – rider weight 75 to 90kg
• 8.8N/mm – rider weight 90 to 105kg
• 9.2N/mm – rider weight +105kg

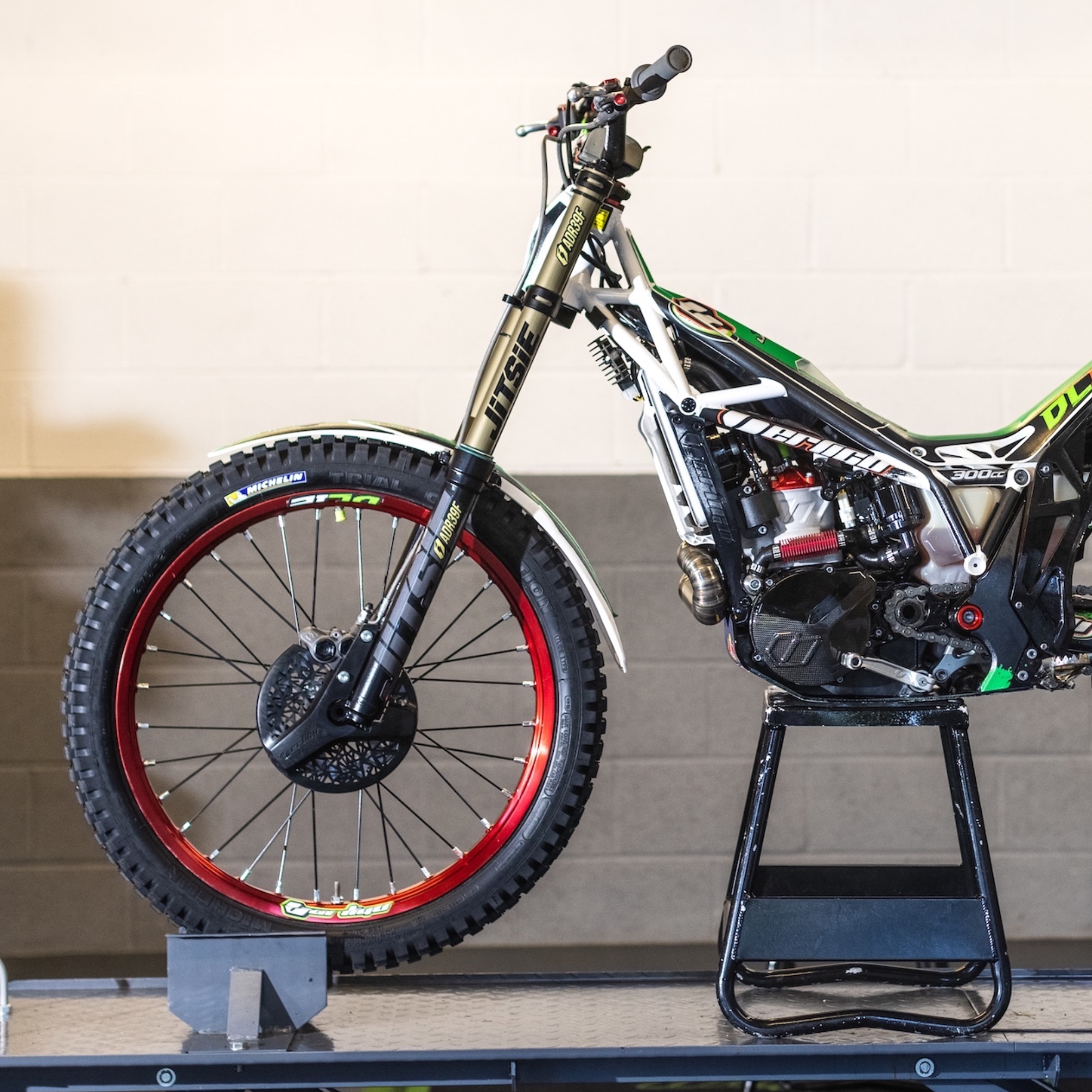

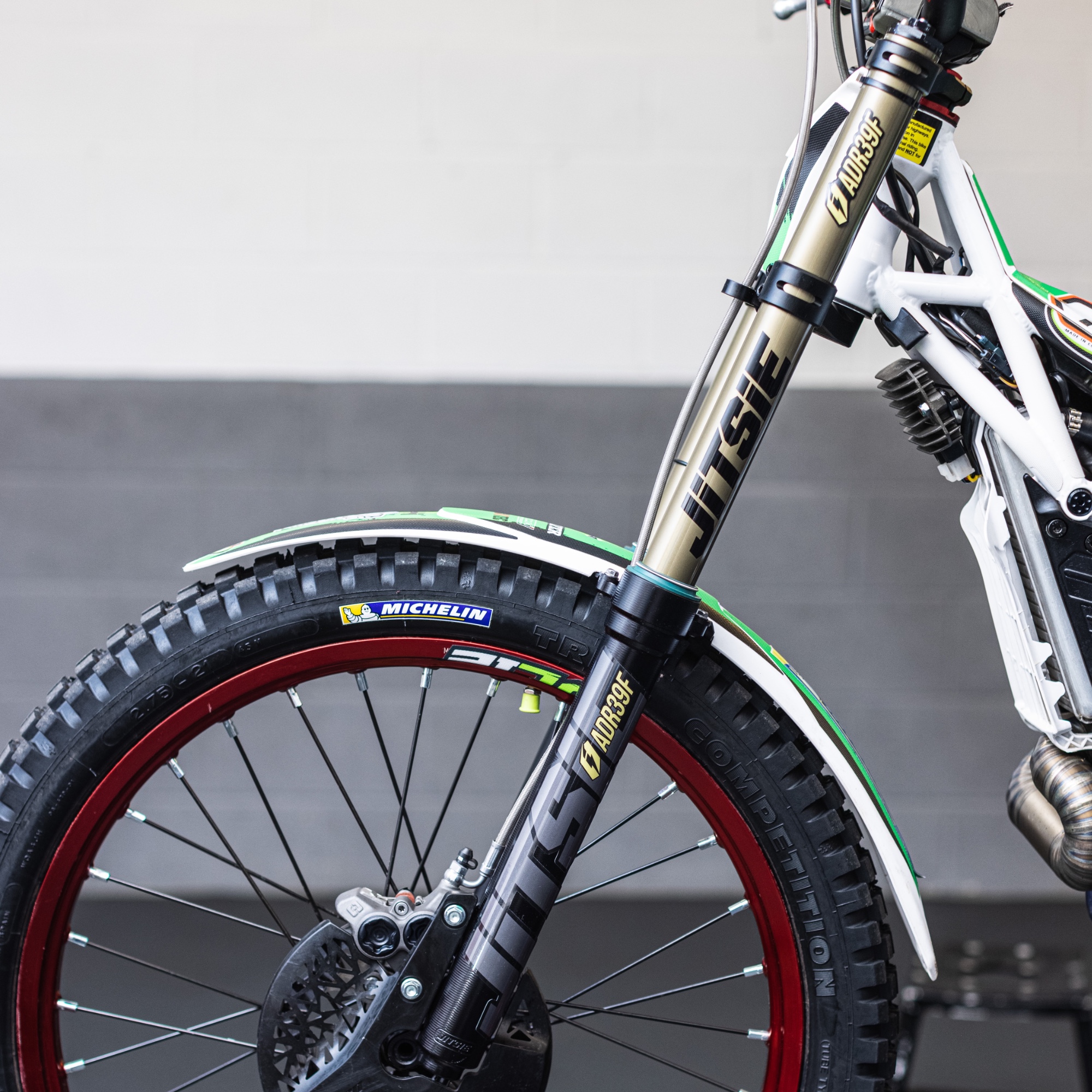

• 91.5MM – Montesa, Scorpa, Sherco, TRS, Vertigo
• 95MM – Gas Gas

• Appie Hens: +25 years experience in suspension technology as R&D team leader at WP Suspension and Technical Touch (KYB Europe)
• Dougie Lampkin: 12x World trials champion (7x outdoor and 5x indoor)

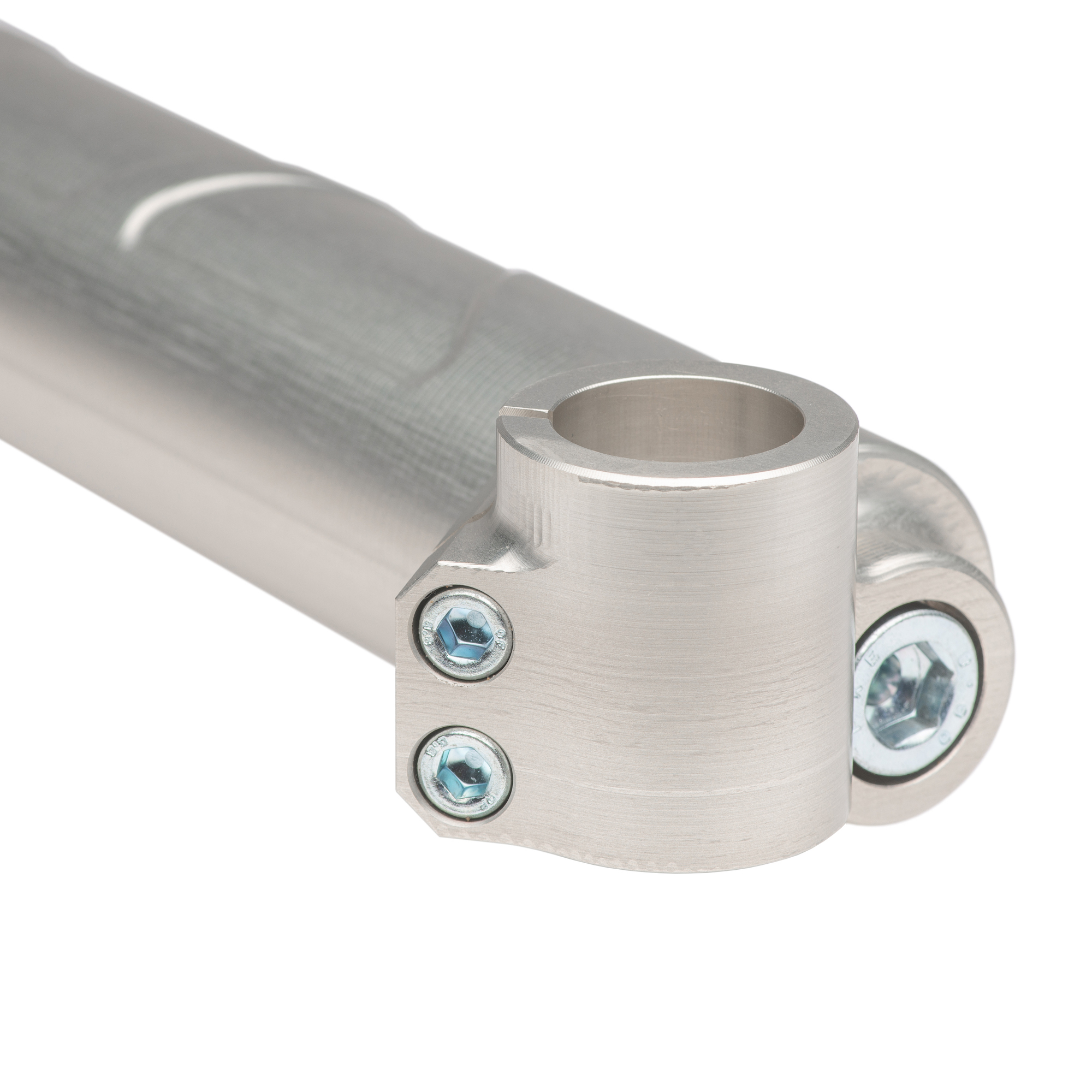

• CNC machined from aerograde aluminium and anodised
• designed to eliminate the need for spacers during installation
• please note that a front wheel spindle is not standard included with the Jitsie ADRF front fork. Make sure to select the correct one for your bike.
