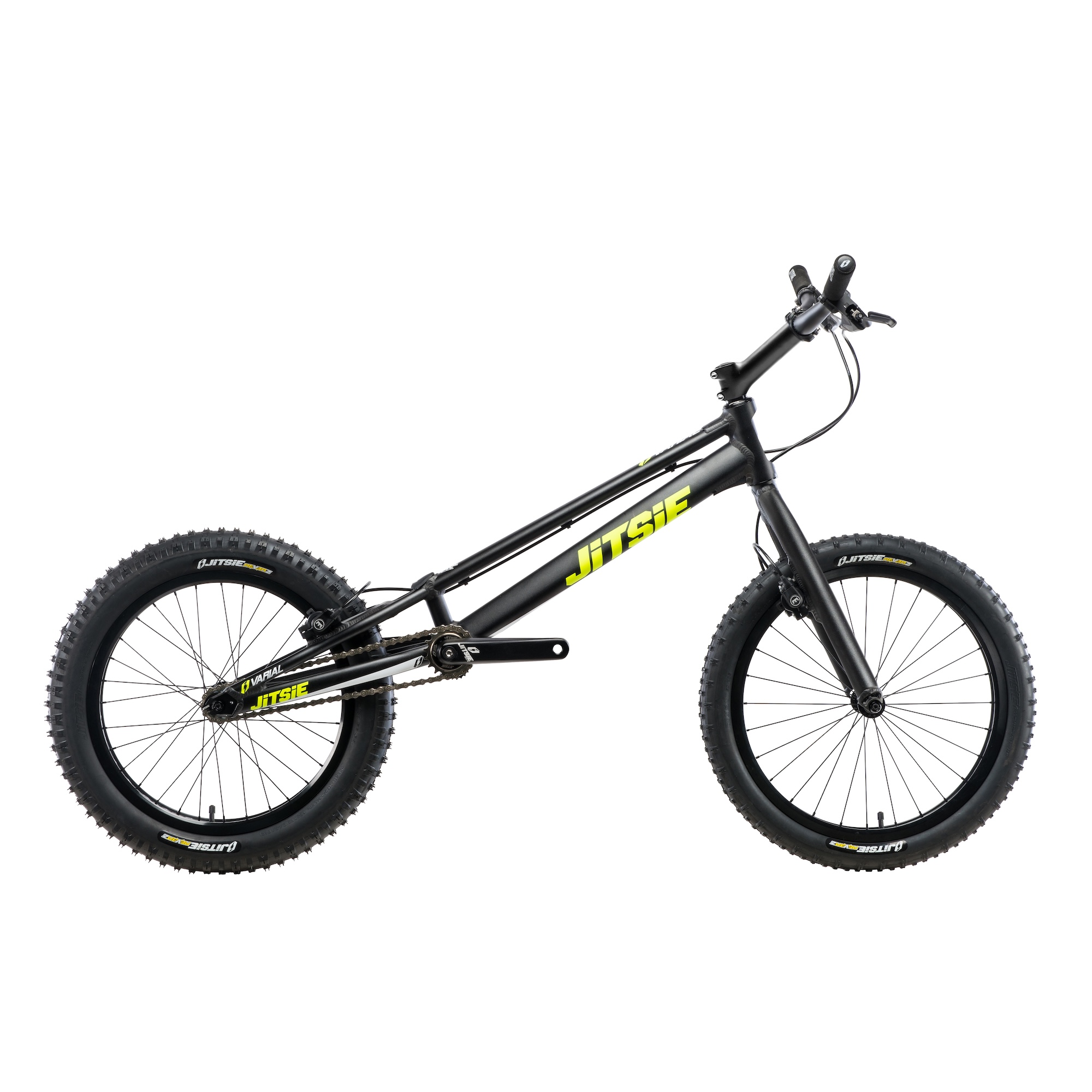

Jitsie Varial Bike 20″ 970MM HS/HS

• manufactured from aerospace 6061-T6 aluminium
• minimalistic design with a focus on performance and durability
• 120mm high CNC machined head tube designed for semi-integrated headset
• 68mm wide bottom bracket shell for ISIS bottom bracket
• CNC machined HS rear brake mount with integrated brake booster for increased strength
• CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
• sandblasted and black anodized finish with Jitsie graphics
• frame comes supplied with lightweight silicon seat plug
• frame allows for the Jitsie aftermarket seat to be installed
• ⚠️ all Jitsie bicycles are partially pre-assembled before shipping. We install the bottom bracket and headset into the frame, so the most technical steps are already done for you.
  The remaining assembly — such as fitting the wheels, cockpit, and drivetrain — is straightforward and can be completed easily at home with basic tools.
  An assembly manual is included in the shipment of every bike to guide you through the final steps.

Taking innovation to the next level in trials, the Varial bike reflects Jitsie’s 100% focus on trials. The unity of quality manufacturing and functional minimalist design result in a performant and durable bicycle that makes it the choice for any trials rider.

• frame: Jitsie Varial 970mm HS
• fork: Jitsie Varial 370mm HS 1 1/8″

• wheelbase: 970mm
• chainstay length: 350mm
• bottom bracket height: 80mm
• headtube: 120mm
• headtube angle: 71.5°

(geometry based on Jitsie Varial fork 370mm and +45mm offset)

• hub front / rear: Jitsie 100mm HS 28h black / Jitsie 116mm HS 32h black
• rim front / rear: Jitsie 20″ 32mm 28h black / Jitsie 19″ 48mm 32h black
• spokes / nipples: inox 1.8mm black / aluminium black
• tyre front / rear: Jitsie Reverz 20″x2.0 / Jitsie Reverz 19″x2.6
• tubes: Jitsie 20″ light 0.9mm

• headset: Jitsie semi-integrated 1 1/8″
• headset spacer: Jitsie 5mm aluminium black
• stem: Jitsie 150mm 25° with flat stem cap black
• handlebar: Jitsie 31.8mm 700x86mm aluminium black
• grips: foam
• front brake / disc: Magura HS
• rear brake / disc: Magura HS

• bottom bracket: Jitsie ISIS 118mm steel
• cranks: Jitsie 160mm black
• pedals: Jitsie caged black
• freewheel: Jitsie 108.9 17t
• protector: Jitsie bash plate black
• sprocket: Jitsie steel 13t
• chain: KMC Z1eHX Narrow
• chain tensioner: Jitsie aluminium/steel snail cams

• 7.95kg including pedals

• Jitsie reserves the right to partially modify the components of the bike according to available stocks and in harmony with the original specifications. The pictures shown are non-contractual.
