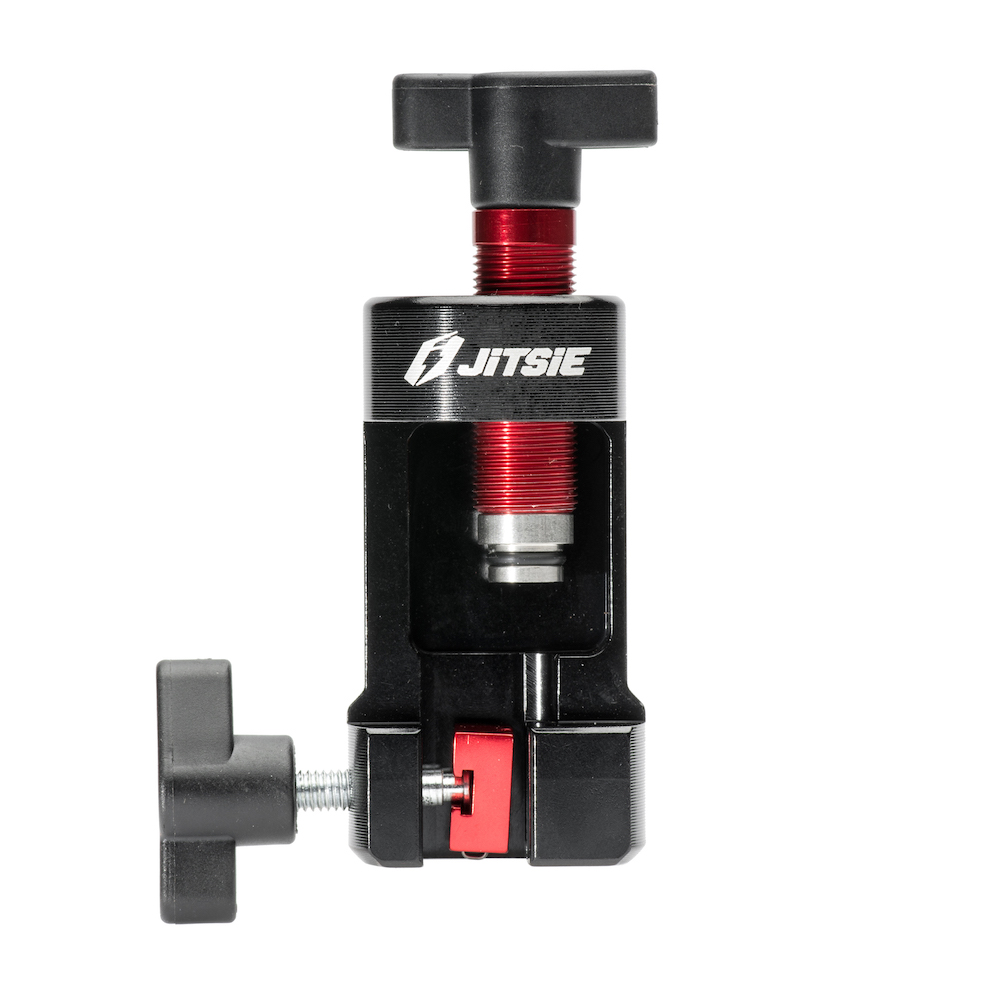

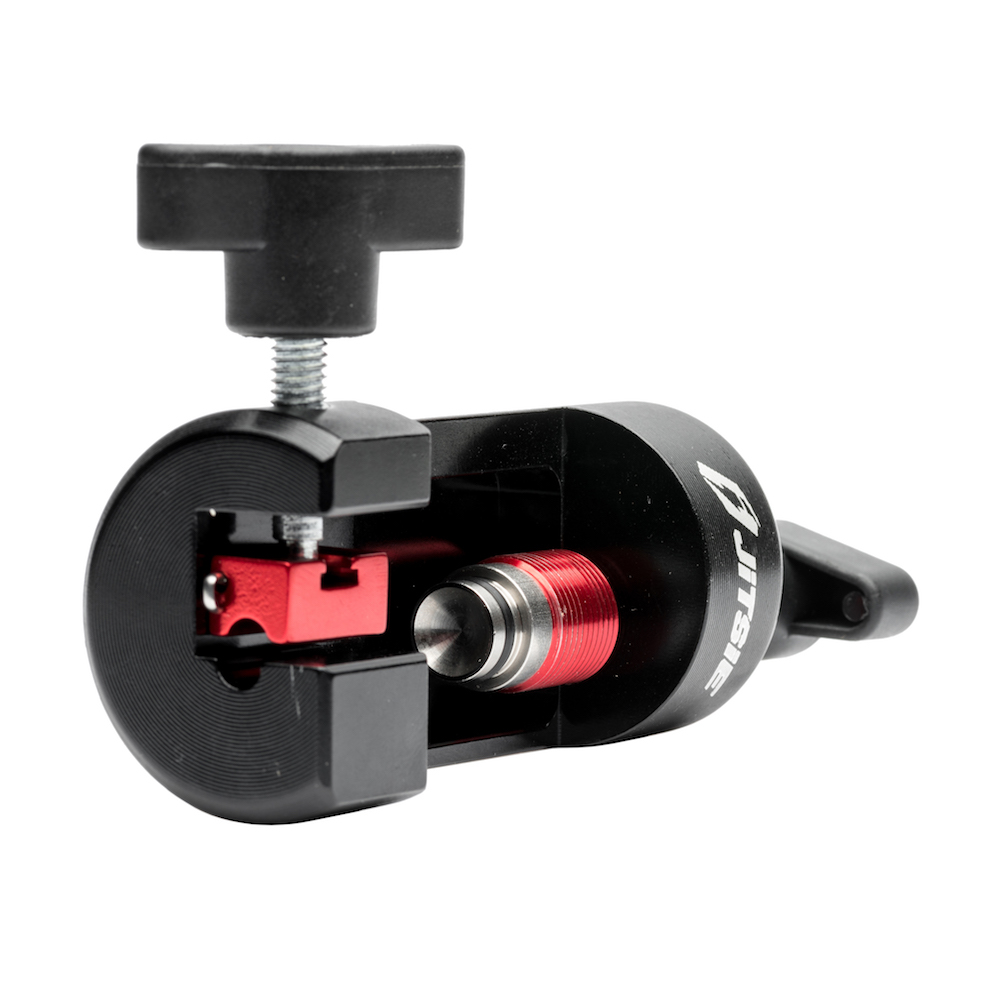

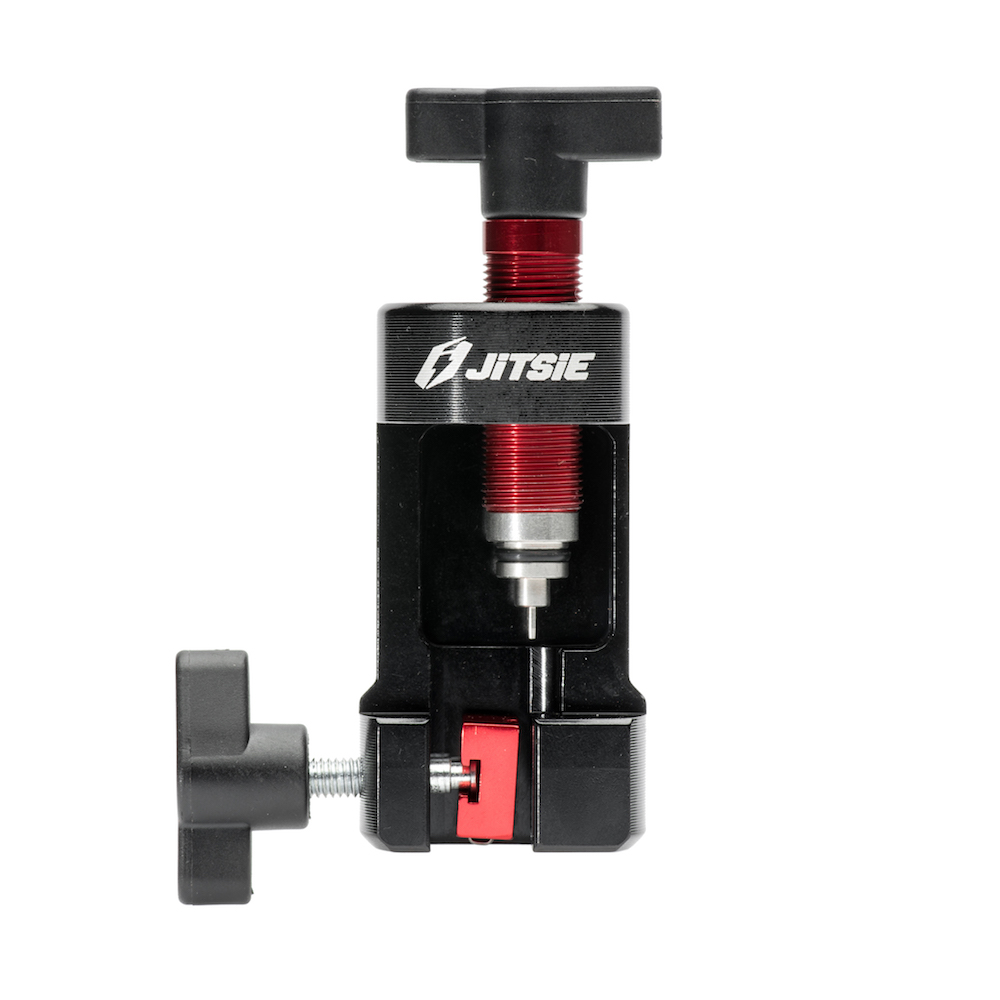

Jitsie Hydraulic Brake Hose Fitting Press

• designed for pressing threaded and barbed fittings into hydraulic brake hoses
• works with Jitsie, Magura, Hope, and other trials/MTB brake systems
• provides straight, controlled installation for leak-free performance
• prevents hose deformation or internal damage during fitting
• machined aluminium construction for durability and precision
• compact, easy-to-use bench or handheld design
• essential tool for professional workshops or riders maintaining their own brakes

The Jitsie hydraulic brake hose fitting press is a precision workshop tool designed to install barbed fittings into hydraulic brake hoses quickly and accurately. Whether you’re working on trials or mountain bike brake systems, this tool ensures a perfect fit without damaging the hose — ideal for Jitsie, Magura, Hope, or similar hydraulic setups.

Step-by-step:

1. Prepare the hose

• cut the hose square and clean with a sharp cutter
• wipe the end with isopropyl alcohol
• slide the shroud nut onto the hose first (threads facing the master cylinder), then add the olive, and finally the barbed fitting

2. Set up the press

• place the hose in the tool’s cradle with the cut end aligned

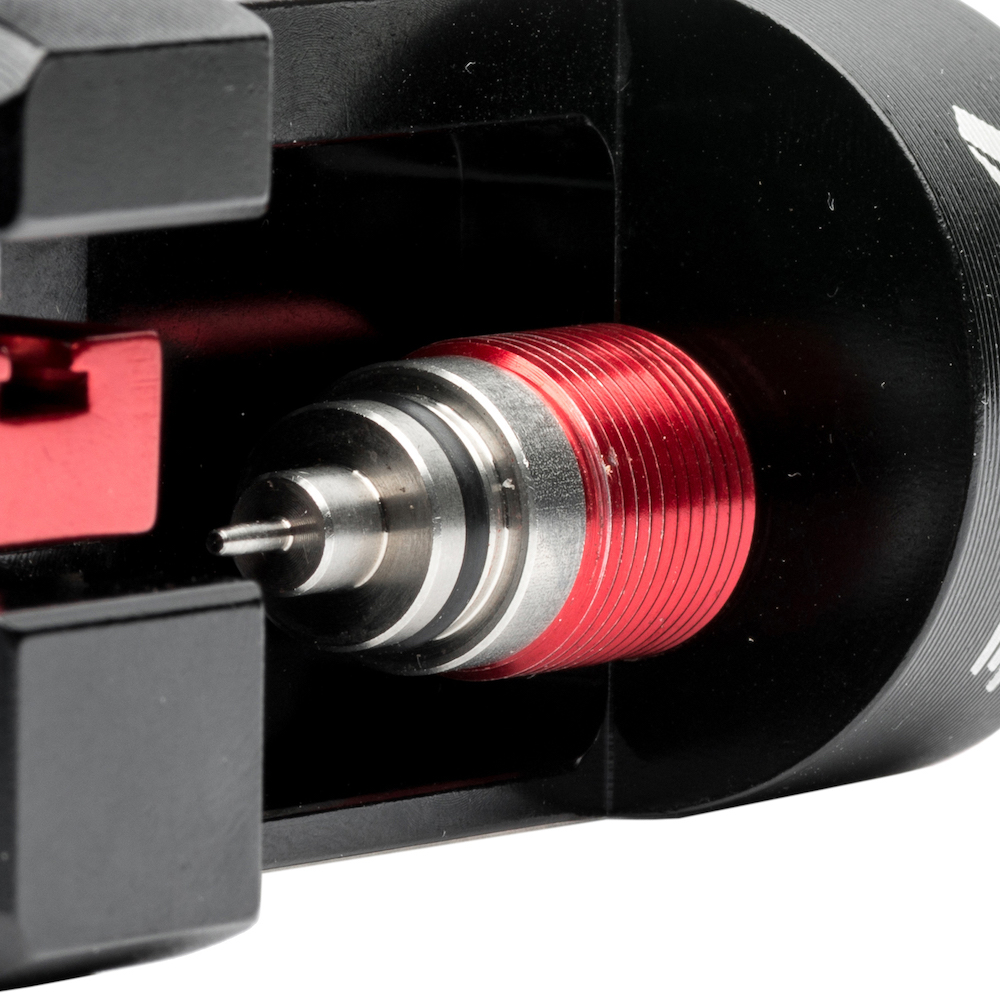

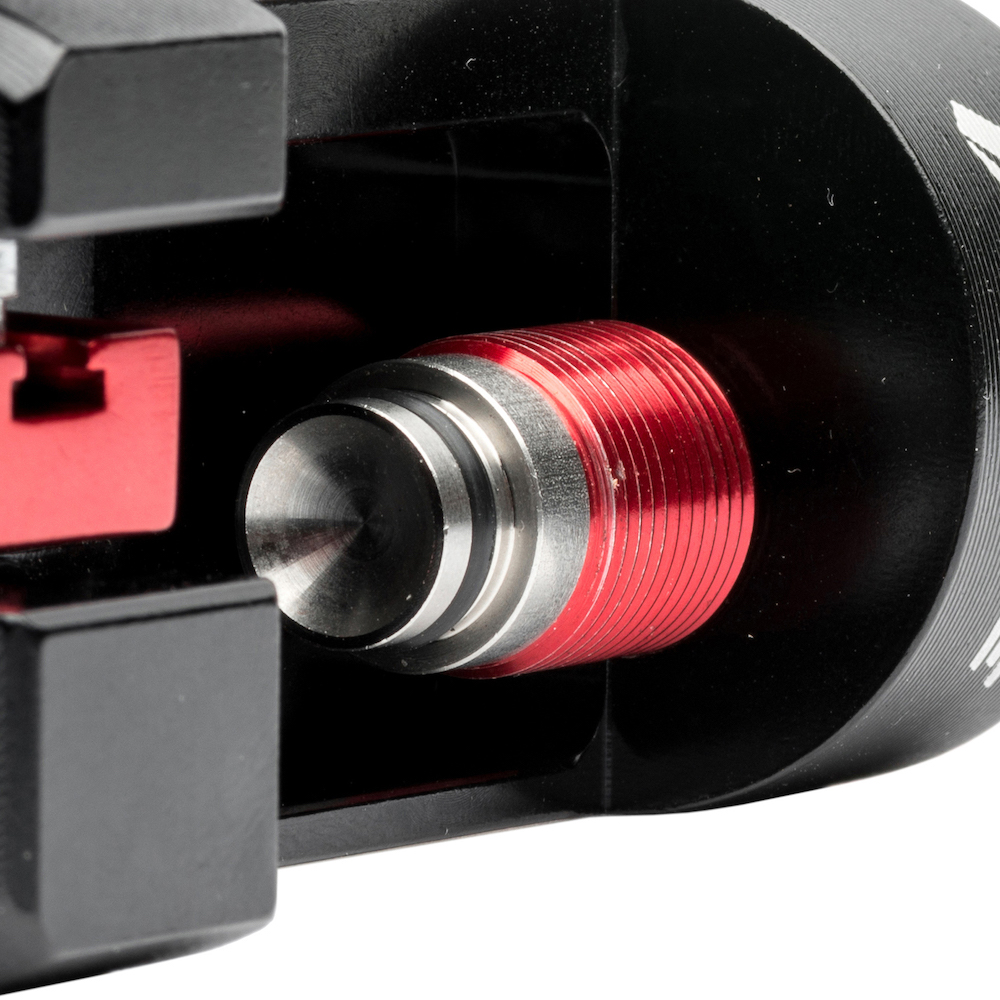

• insert the barbed fitting into the press nosepiece
• (optional) apply a tiny drop of brake fluid to the barb for easier pressing

3. Press the barb

• close the tool and tighten smoothly until the barb seats flush with the hose end
• don’t over-press; stop once it’s fully inserted and straight

4. Finish the assembly

• slide the olive forward against the hose end
• thread the shroud nut into the lever or caliper by hand, then tighten to the brand’s torque spec (≈ 4–6 Nm)
• ensure the hose sits straight while tightening

5. Check and bleed

• pull lightly on the hose — it should not move
• wipe clean and perform a system bleed if needed
• re-inspect after first use to confirm there’s no fluid weep

Tips:

• always use the correct hose, fittings, and fluid for your brake brand
• a clean, square cut = reliable, leak-free connection
• keep DOT and mineral oil components completely separate
