Jitsie Footpeg Hanger Bolt Kit Beta Evo/Sincro 09-26

• smooth round head design helps minimise boot wear
• high-strength 10.9 grade steel
• available bot Beta Evo and Sincro models
• designed for the high loads generated around the footrest hangers
• direct replacement for OEM hardware
• complete kit includes 4 bolts
• recommended use with medium-strength thread locking compound

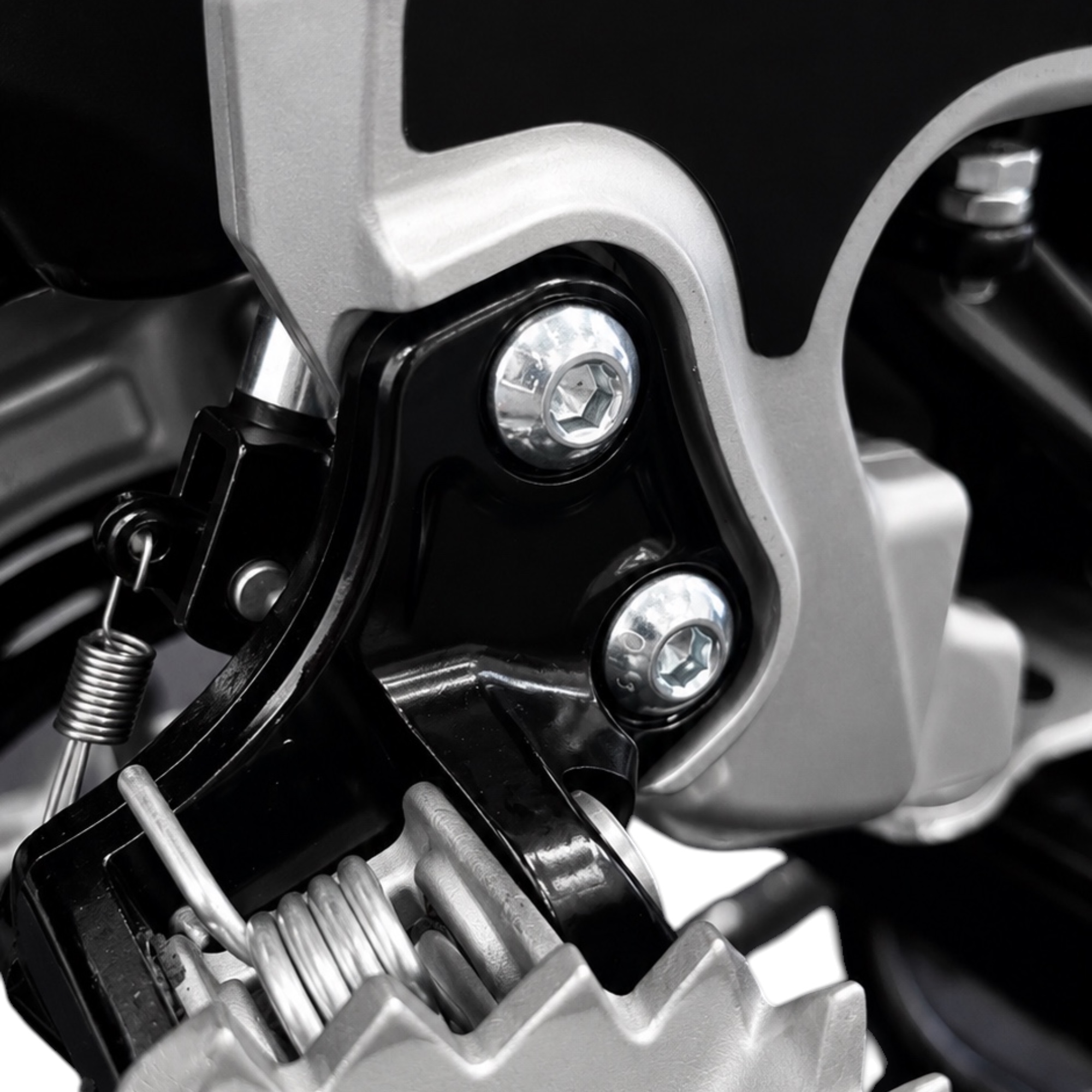

The original bolts on the Beta Evo/Sincro footpeg hangers use a hex head flange design with exposed corners that can rub against the inside of the rider’s boots during riding. Over time, this contact can contribute to premature wear in an area that already sees a lot of movement.

The Jitsie bolt kit uses high-strength 10.9 grade steel bolts with a smooth round head design to reduce boot wear while maintaining the strength required for one of the most heavily loaded areas of the motorcycle.

Each kit includes four bolts for a complete footrest hanger installation. Simply apply a small amount of thread locking compound during installation for maximum security.

• M8x20mm – 11.54492.000
• M8x30mm – 31.64070.000
• M8x45mm – 11.55690.000

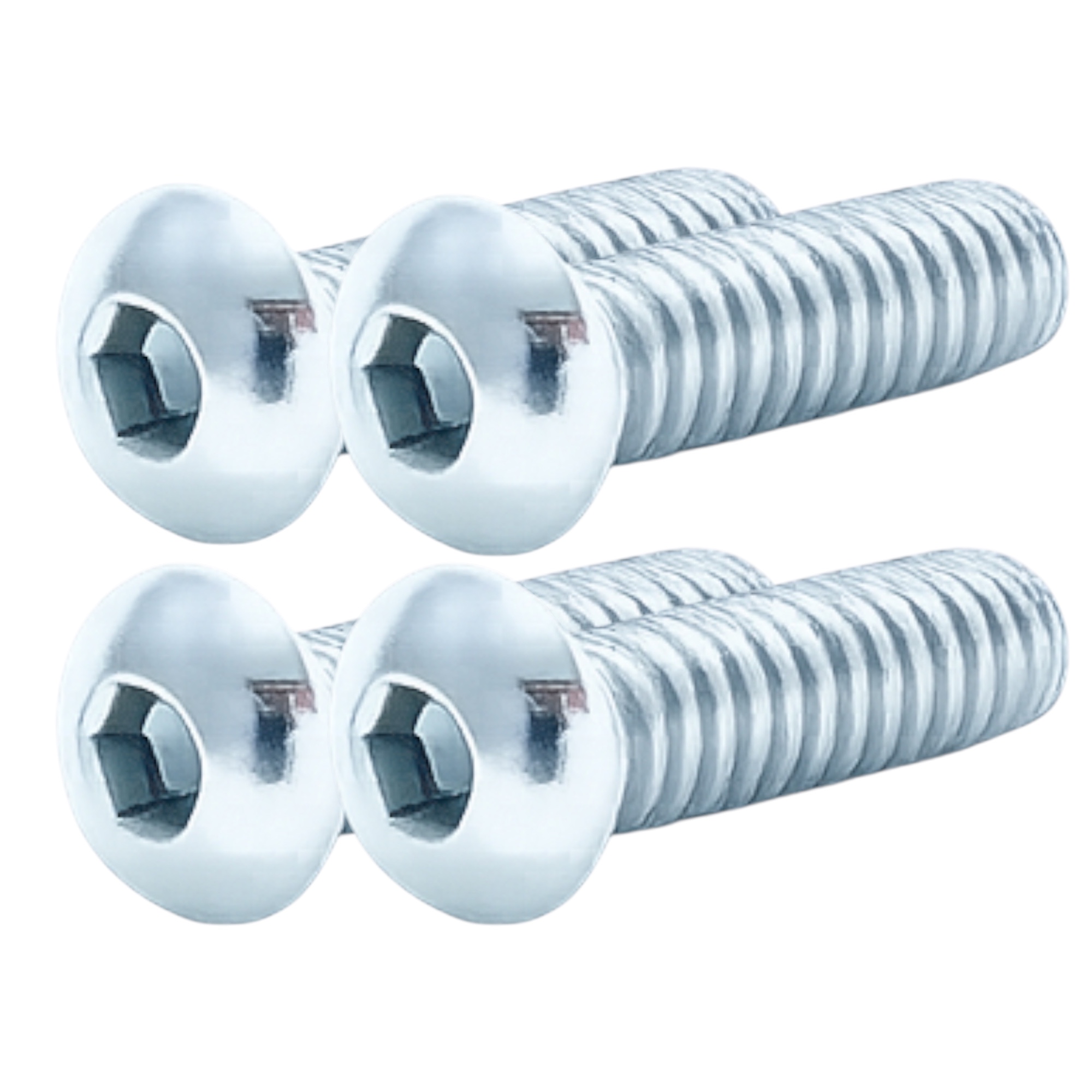

• Beta Evo – 4 × M8x30mm bolts

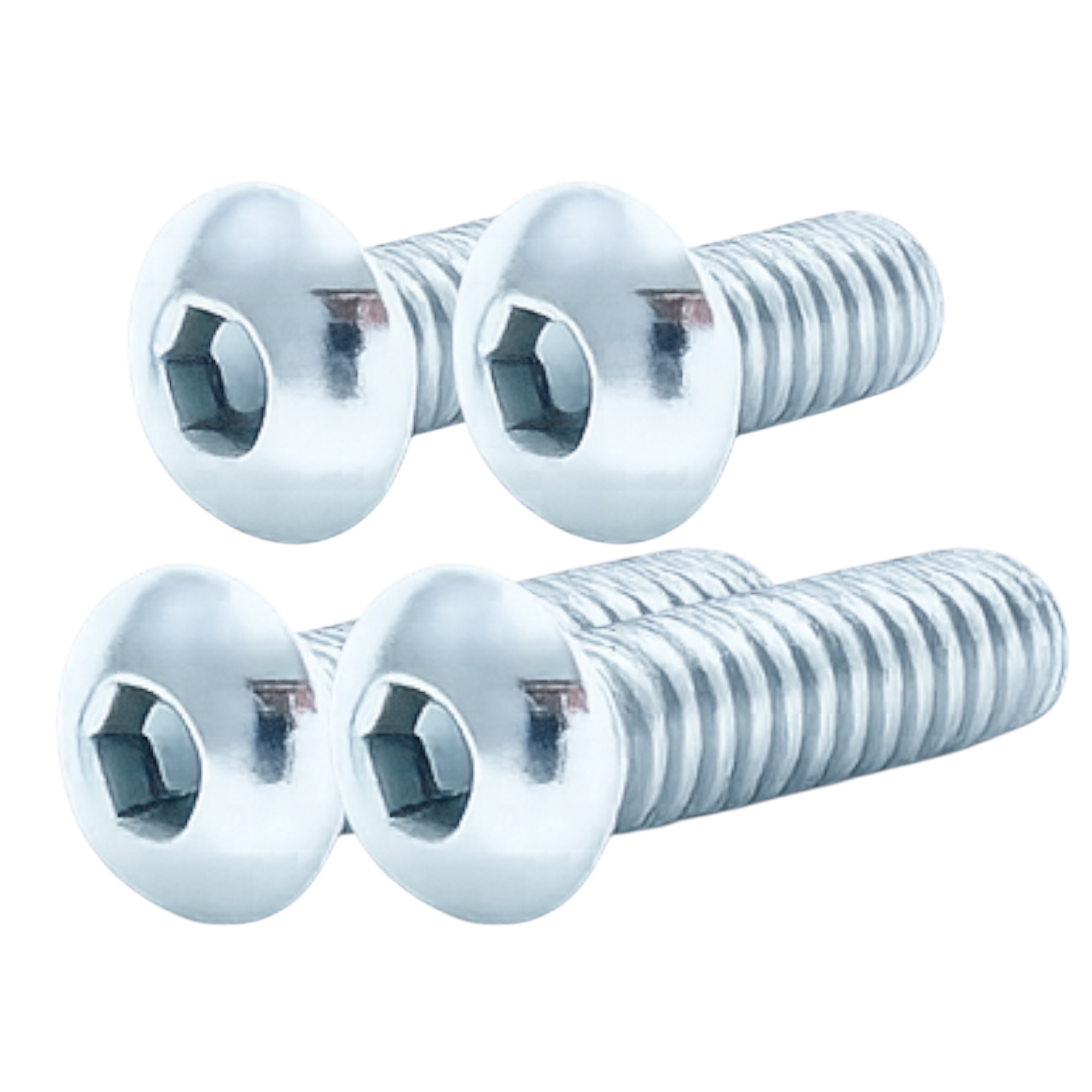

• Beta Sincro:
  • 2 × M8x20mm bolts – top bolt on each footpeg hanger
  • 1 × M8x30mm bolt – bottom bolt on chain side
  • 1 × M8x45mm bolt – bottom bolt on brake disc side
